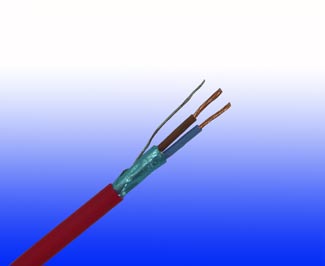

300/500V SR Insulated Control Cables (2-4 Cores)
FFX200 05SZ1-U (PH60) (CU/SR/LSZH 300/500V Class 1)
APPLICATION
The cables are designed, for use as control cable for emergency services and fire circuit control.
 |
 |
STANDARDS
- Basic design adapted to BS 7629-1
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
| Circuit Integrity with mechanical shock | EN 50200(PH60); CEI 20-36/4-0 |
| Circuit Integrity with mechanical shock & water spray | EN 50200 annex E |
| System circuit integrity | DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundledwires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
300/500 V

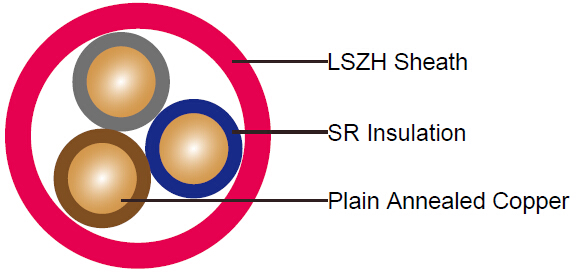

CABLE CONSTRUCTION
| Conductors | Plain annealed copper wire, solid according to IEC 60228 class 1 |
| Insulation | Fire resistant special ceramized silicone rubber compound type EI2 as per BS 7655-1.1 |
| Cabling | The cores are cabled together in concentric layers with suitable non-hygroscopic fillers |
| Sheath | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
COLOUR CODE
Insulation Colour as per BS 7629
Number of cores |
Core colours or numbering |
2 cores+uninsulated circuit protective conductor |
Brown, Blue or Brown, Brown |
3 cores+uninsulated circuit protective conductor |
Brown, Black, Grey |
4 cores+uninsulated circuit protective conductor |
Brown, Blue, Black, Grey |
Sheath Colour: Orange (other colours upon request)
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) | -30°C – +90°C |
| Temperature range during installation (mobile state) | -20°C – +50°C |
| Minimum bending radius | 6 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test | 2000 V r.m.s. x 5' (core/core) |
| Insulation resistance | ≥300 MΩ x km (at 20°C) |
| Short circuit temperature | 350°C |
CONSTRUCTION PARAMETERS
| Cable Code | No. of Core X Cross Section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/km | |
| 2 core | |||||
| FFX200 05SZ1-U (PH60) 2G1.5 | 2x1.5 | 0.7 | 0.9 | 7.4 | 70 |
| FFX200 05SZ1-U (PH60) 2G2.5 | 2x2.5 | 0.8 | 1.0 | 8.8 | 105 |
| 3 core | |||||
| FFX200 05SZ1-U (PH60) 3G1.5 | 3x1.5 | 0.7 | 0.9 | 7.9 | 93 |
| FFX200 05SZ1-U (PH60) 3G2.5 | 3x2.5 | 0.8 | 1.0 | 9.4 | 141 |
| 4 core | |||||
| FFX200 05SZ1-U (PH60) 4G1.5 | 4x1.5 | 0.7 | 1.0 | 8.8 | 122 |
| FFX200 05SZ1-U (PH60) 4G2.5 | 4x2.5 | 0.8 | 1.1 | 10.4 | 183 |
ELECTRICAL PROPERTIES
| Conductor Operating Temperature | 90°C |
| Ambient Temperature | 30°C |
Current-Carrying Capacities(Amp)
| Conductor cross-sectional area | Reference Method A (enclosed in conduit in thermally insulating wall etc) | Reference Method B (enclosed in conduit on a wall or in trunking etc) | Reference Method C (clipped direct) | Reference Method E (in free air or on aperforated cable tray, horizontal or vertical etc) Touching | ||||
|---|---|---|---|---|---|---|---|---|
| 1 two-core cable*, single-phase a.c. or d.c. | 1 three-or four corecable*, three-phase a.c. | 1 two-core cable*,single-phase a.c. or d.c. | 1 three-or four corecable*, three-phase a.c. | 1 two-core cable*, single-phase a.c. or d.c. | 1 three-or four corecable*, three-phase a.c. | 1 two-core cable*,single-phase a.c. or d.c. | 1 three-or four corecable*, three-phase a.c. | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| mm2 | A | A | A | A | A | A | A | A |
| 1.5 | 18.5 | 16.5 | 22 | 19.5 | 24 | 22 | 26 | 23 |
| 2.5 | 25 | 22 | 30 | 26 | 33 | 30 | 36 | 32 |
| 4 | 33 | 30 | 40 | 35 | 45 | 40 | 49 | 42 |
Voltage Drop (Per Amp Per Meter)
| Conductor cross-sectional area | Two-core cables, d.c. | Two-core cable, single-phase a.c. | Three-or four core cable,three-phase a.c. |
|---|---|---|---|
| 1 | 2 | 3 | 4 |
| mm2 | mV/A/m | mV/A/m | mV/A/m |
| 1.5 | 31 | 31 | 27 |
| 2.5 | 19 | 19 | 16 |
| 4 | 12 | 12 | 10 |
